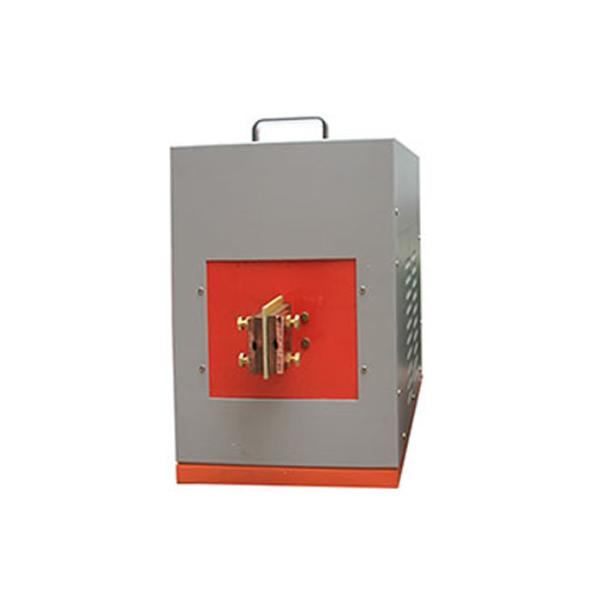

60KHz 380V High Frequency Furnace Induction Heating For Industrial

Product Categories
shenyang lincheng Technology Co., Ltd
Contact Now

60KHz 380V High Frequency Furnace Induction Heating For Industrial

Brand Name : lincheng

Model Number : LC-WGH-60

Place of Origin : Shenyang, China

MOQ : discussible

Price : discussible

Payment Terms : L/C, T/T

Supply Ability : 15 sets per day

Delivery Time : 3-10 working days

Packaging Details : Wooden case packaging

Product model : WGH-60

output power : 605Kw

Oscillation frequency : 60KHz

output : 380V

Cooling water pressure : 0.2Mpa

water temperature : 65℃

Contact Now

High Frequency Furnace

Introduction To High Frequency Furnace:

The high-frequency induction furnace is an advanced heating method, because the high-frequency power output is only available when the sample is burned. After the combustion is completed, the high-frequency induction will stop immediately. After the high-frequency furnace is started, the sample can be analyzed at any time without heating and preheating time. The high-frequency furnace has very excellent combustion performance. The carbon and sulfur conversion rates are higher than those of the tubular furnace. The carbon can be considered as nearly 100%, and the sulfur can be more than 99% according to the relevant information.

Technical Parameters Of High Frequency Furnace:

Serial
number		 Product
model		 output
power		 Oscillation
frequency		 output Cooling
water pressure		 water
temperature
1 WGH-15 15Kw 50-100KHz 220V 0.2Mpa <40℃
2 WGH-25 25Kw 50-100KHz 380V 0.2Mpa <40℃
3 WGH-35 35Kw 50-100KHz 380V 0.2Mpa <40℃
4 WGH-40 40Kw 50-100KHz 380V 0.2Mpa <40℃
5 WGH-60 60Kw 20-80KHz 380V 0.2Mpa <40℃
6 WGH-80 80Kw 20-80KHz 380V 0.2Mpa <40℃
7 WGH-100 100Kw 20-80KHz 380V 0.2-0.3Mpa <40℃
8 WGH-120 120Kw 20-80KHz 380V 0.2-0.3Mpa <40℃
9 WGH-160 160Kw 20-80KHz 380V 0.2-0.3Mpa <41℃
10 WGH-200 200Kw 20-80KHz 380V 0.2-0.3Mpa <42℃

High frequency furnace application:

The frequency of the power supply used is above 10000hz, up to 1MHz. High frequency induction furnace needs frequency conversion equipment. The capacity of high-frequency induction furnace is generally below 100kg due to the limitation of power supply. High frequency induction furnace is mainly used for scientific research in laboratory. The high-frequency power supply equipment can be equipped with quenching equipment for surface quenching of mechanical parts in the heat treatment department.
